88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar

88.9 mm NC44-60 drill collar

144.5 mm bevel diameter drill collar

cementing float equipment drill collar

ブランド名:

SWS

私達に連絡しなさい

引用を要求しなさい

88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar

プロダクト細部

製品名:

ドリル・カラー

番号と接続表:

NC44-60

外径 ((インチ):

外径（mm）:

88.9

内部直径 ((インチ):

1-1/2

内径（mm）:

71.4

長さ（mm）:

9150または9450

ベーベル直径 ((mm):

144.5

折りたたみの強度比:

2.84:1

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar

最もよい価格を得なさい

88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar

最もよい価格を得なさい

Oil Well Drilling Oil Field Equipment NC44-60 Drill Collar 6 Inch Outside Diameter

最もよい価格を得なさい

Drill Collar NC35-47 9150 mm Length for Oil Well Drilling Oil Field Equipment

最もよい価格を得なさい

私達に連絡しなさい

86-519-83553967

Leo@service-js.com

86-519-83553967

今接触

製品の説明

COMPANY PROFILE

88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar 0

We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar 1

CERTIFICATES

PRODUCT DESCRIPTION

Drill Collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drillsting in tension. Our Drill Collar has been approved by the NS-1 certification, it is manufactured from 4145H modified quenched and tempered steel, strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.

Features and Benefits

A hardness range of 285 to 341 BHN and a Charpy impact value of 40 ft-lbs are guaranteed at evenly distributed 16 points in any sections at room temperature;

Connections are completed (phosphate coated) to protect them from the elements after machining and to help prevent galling upon initial make-up;

Thread roots are cold rolled on APl and H-90 connections;

88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar 3

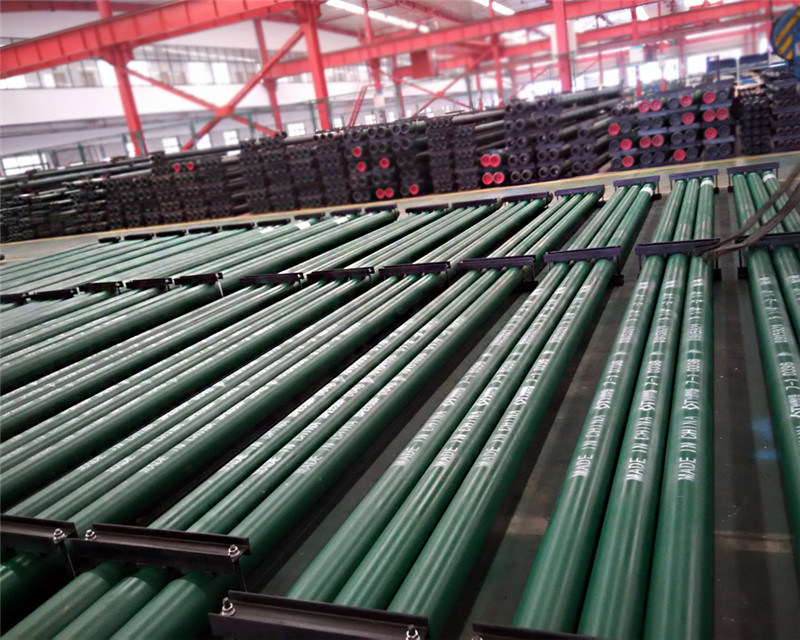

FACTORY PHOTOS

88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar 9

EXHIBITION

88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar 10

PACKAGE & TRANSPORTATION
