NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment

ブランド名:

SWS

私達に連絡しなさい

引用を要求しなさい

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment

プロダクト細部

製品名:

ドリル・カラー

番号と接続表:

NC46-62 ((4IF)

外径 ((インチ):

6-1/2 病気の原因

外径（mm）:

158.8

内部直径 ((インチ):

2・13・16

内径（mm）:

71.4

長さ（mm）:

9150または9450

ベーベル直径 ((mm):

150

折りたたみの強度比:

2.63:1

API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling

最もよい価格を得なさい

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

最もよい価格を得なさい

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

最もよい価格を得なさい

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

最もよい価格を得なさい

私達に連絡しなさい

86-519-83553967

Leo@service-js.com

86-519-83553967

今接触

製品の説明

COMPANY PROFILE

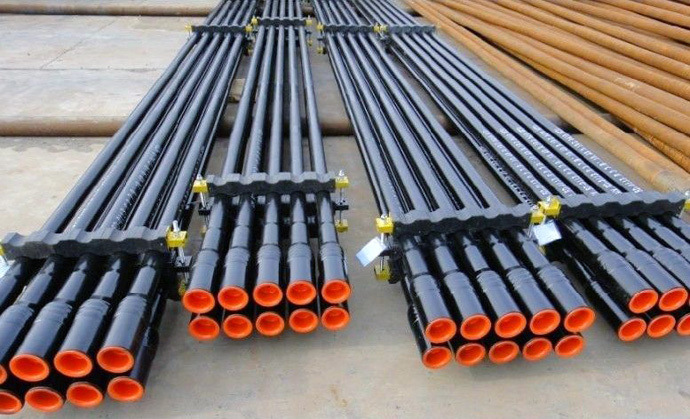

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 0

We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

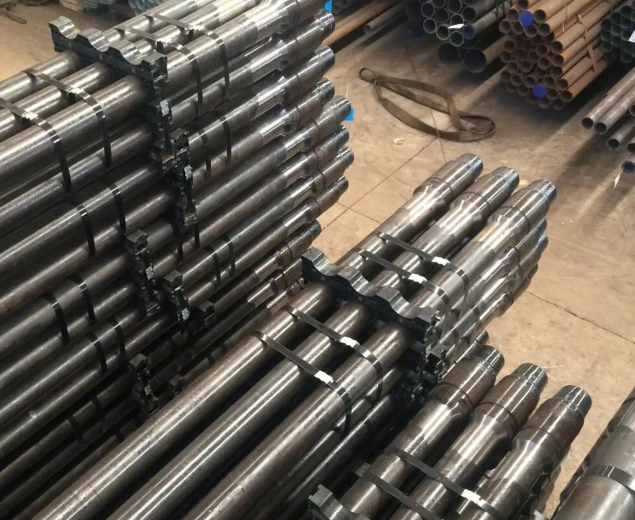

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 1

CERTIFICATES

PRODUCT DESCRIPTION

Drill Collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drillsting in tension. Our Drill Collar has been approved by the NS-1 certification, it is manufactured from 4145H modified quenched and tempered steel, strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.

Features and Benefits

A hardness range of 285 to 341 BHN and a Charpy impact value of 40 ft-lbs are guaranteed at evenly distributed 16 points in any sections at room temperature;

Connections are completed (phosphate coated) to protect them from the elements after machining and to help prevent galling upon initial make-up;

Thread roots are cold rolled on APl and H-90 connections;

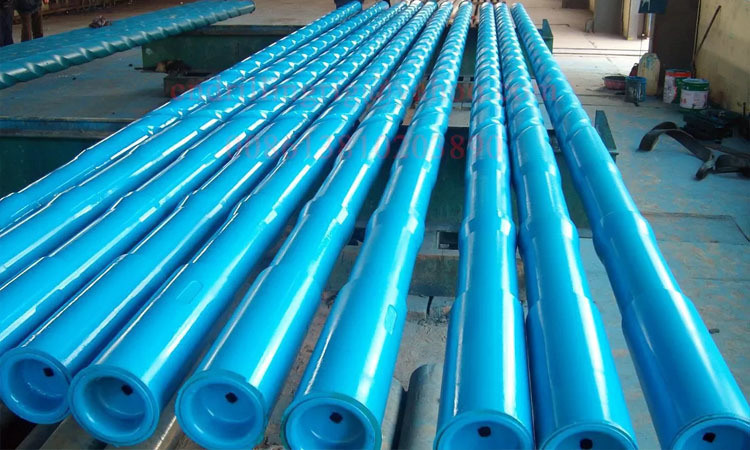

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 3

FACTORY PHOTOS

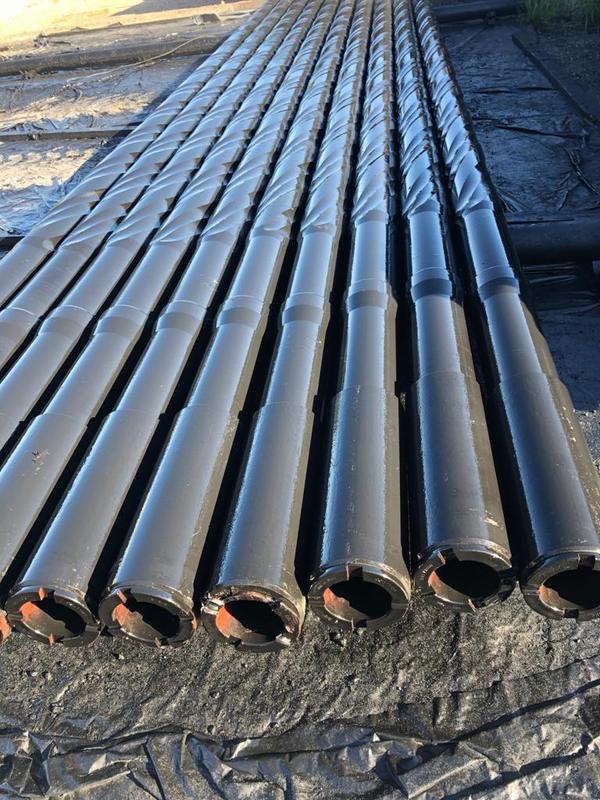

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 9

EXHIBITION

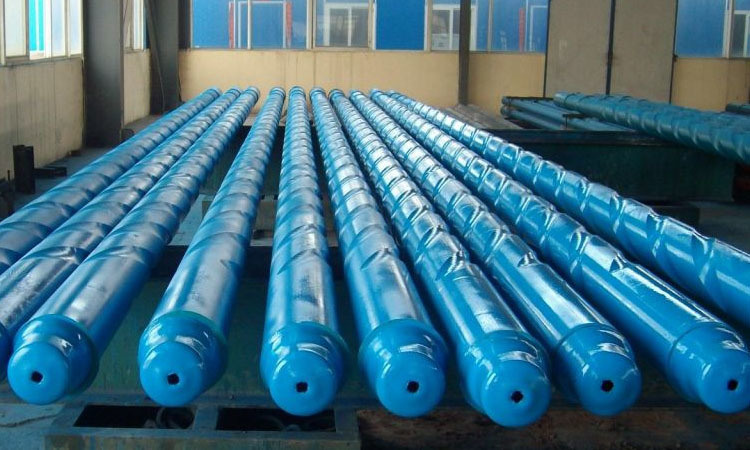

NC46-62(4IF) 158.8 mm Outside Diameter Drill Collar for Oil Well Drilling Oil Field Equipment 10

PACKAGE & TRANSPORTATION
