API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling

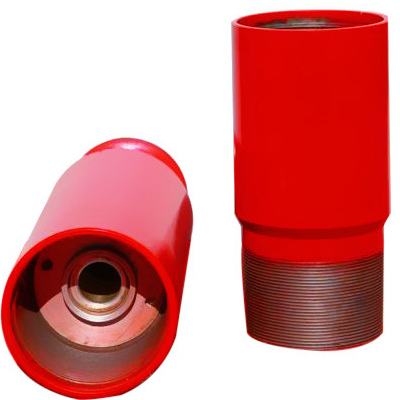

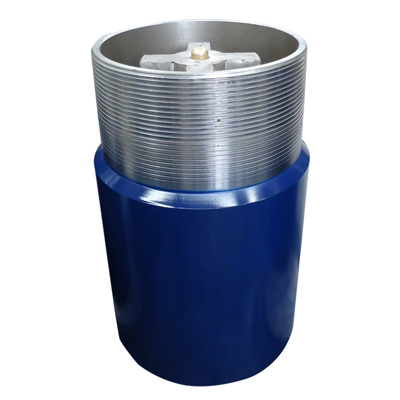

API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling

70MPa Bearing Pressure Float Collar

204°C Seal Float Shoe

High Flow Valves Cementing Float Equipment

起源の場所:

江蘇、中国

ブランド名:

SWS

私達に連絡しなさい

引用を要求しなさい
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling
プロダクト細部
寸法:
5" - 20"
重さ:
10 kg
スレッドタイプ:
STC LTC BTC EUE NUE XC
材料:
炭素鋼/アルミニウム合金
bore od:
6 "、7 5/8"、10 5/8 "、14 3/8"
ボアID:
4 3/4 "、6 1/4"、8 5/8 "、12 3/8"
最小退屈:
2 "、2 3/8"
バルブサイズ:
70mm、90mm
シール温度:
150°C、204°C
バルブ圧力:
70mpa
春の素材:
蛍光ブロンズC510
プランジャーシール:
HNBR
生産能力:
≥10000 個/月
コアコンポーネント:
バルブ
タイプ:
スキッドマウント
関連製品
よい価格 API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling オンラインで

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

最もよい価格を得なさい
よい価格 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling オンラインで

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

最もよい価格を得なさい
よい価格 API 5CT 7-5/8

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

最もよい価格を得なさい
よい価格 Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty オンラインで

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

最もよい価格を得なさい
私達に連絡しなさい
86-519-83553967
Leo@service-js.com
86-519-83553967
今接触
製品の説明
Multi Style Well Drilling Double Valve Float Collar and Float Shoe
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 0 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 0
Product Description
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 2 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 2
Name Size(in) Bore O.D.(in) Bore I.D.(in) Min Bore Parameter(in) Thread Type lb(in2)
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.
Hi Flow valves reduce fluid erosion and minimize pressure drop. Hi Flow valves are manufactured in two sizes: 70mm and 90mm. PDC drillable composite plastic materials are used for the valve components. Standard seal rated to 150°C with optional 204°C seal.
Valve body molded with fiber phenolic, 70MPa and 204°C seal. Spring purchased from Canada Victory Spring Company, phosphor bronze C510 material, high restoring force and drillable. Plunger seal top molded with HNBR, 70MPa and 204°C seal.
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 4 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 4 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 6 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 6 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 8 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 8 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 10 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 10 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 12 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 12 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 14 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 14 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 16 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 16
Company Profile
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 18 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 18
Our Advantages
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 20 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 20
Our Factory
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 22 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 22 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 24 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 24
Certifications
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 26 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 26 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 28 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 28 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 30 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 30 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 32 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 32
Frequently Asked Questions
Q1: When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.
Q2: Could I have prices of your products?
Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.
Q3: Can I get a lower price if I order large quantities?
Yes, cheaper prices with bigger quantity orders.
Q4: Do you inspect the finished products?
Yes, each step of production and finished products will be inspected by QC department before shipping.
Q5: What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
