API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals

API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals

139.7mm Float Collar

150°C Seal Float Shoe

204°C Seal Cementing Float Equipment

起源の場所:

江蘇、中国

ブランド名:

SWS

私達に連絡しなさい

引用を要求しなさい
API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2 API Standard 5-1/2
プロダクト細部
寸法:
50*30*30
重さ:
10 kg
コアコンポーネント:
バルブ
バルブタイプ:
シングルバルブとダブルバルブ
処理型:
鍛造
仕様:
2〜3/8~20インチ
スレッドタイプ:
BTC\LTC\ 特別糸\ EU\ NU
スチールグレード:
N80\L80\P110
bore od:
6 "
ボアID:
4 3/4 インチ
最小退屈:
2 "
スレッドタイプ:
5 1/2 "LCSG
圧力評価:
4351 lb（in2）
温度定格:
204°C
材料:
繊維フェノール
関連製品
よい価格 API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling オンラインで

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

最もよい価格を得なさい
よい価格 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling オンラインで

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

最もよい価格を得なさい
よい価格 API 5CT 7-5/8

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

最もよい価格を得なさい
よい価格 Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty オンラインで

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

最もよい価格を得なさい
私達に連絡しなさい
86-519-83553967
Leo@service-js.com
86-519-83553967
今接触
製品の説明
API Standard 5-1/2" (139.7mm) Oilfield Cementing Tools - Casing Stab-In Float Collar and Float Shoe
High-performance float equipment designed for primary cementing operations in oilfield applications.

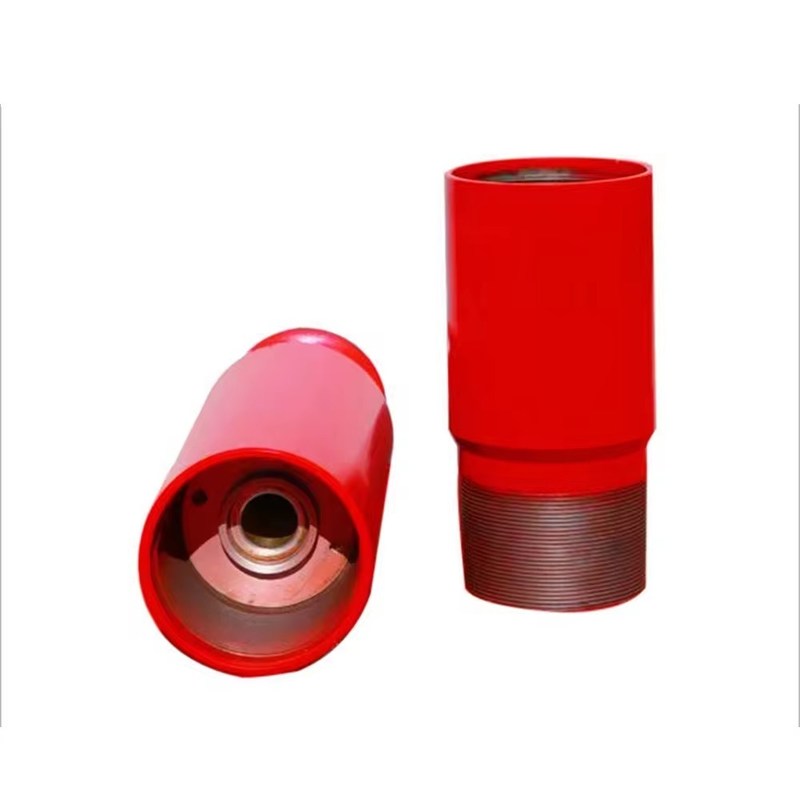

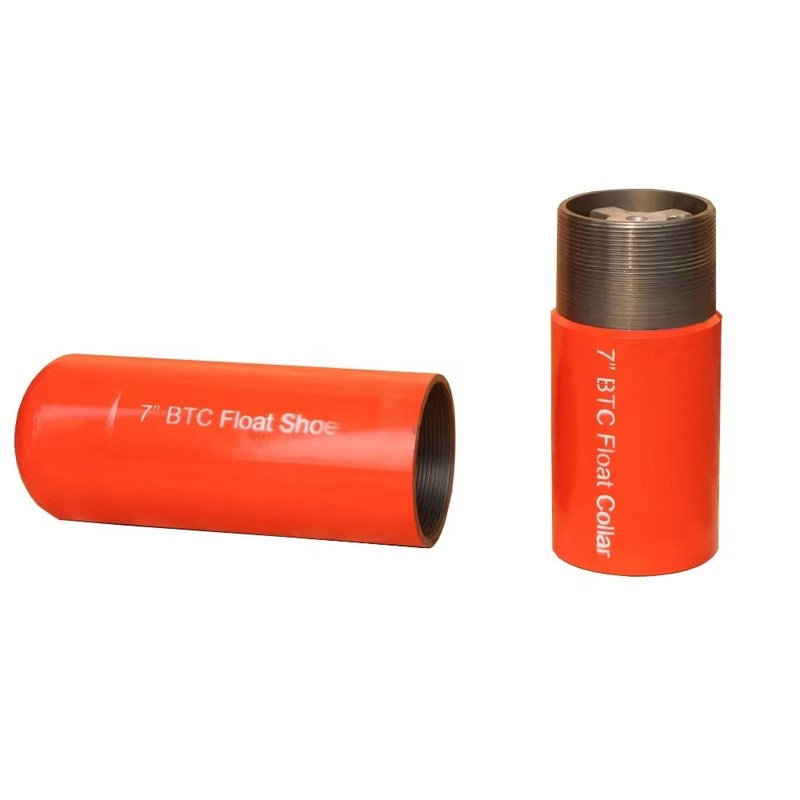

API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 0 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 1 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 2
Technical Specifications
Name Size (in) Bore O.D. (in) Bore I.D. (in) Min Bore Parameter (in) Thread Type lb/in²
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Key Features and Benefits
  • Essential component of casing equipment for primary cementing operations
  • Guides casing to total depth and prevents contaminated mud entry
  • Provides landing point for casing wiper plugs
  • Reinforces lower end of casing string for improved structural integrity
  • Ensures precise cement slurry displacement
  • Hi-Flow valves reduce fluid erosion and minimize pressure drop
  • Available in 70mm and 90mm sizes
  • PDC drillable composite plastic materials for valve components
  • Standard seal rated to 150°C with optional 204°C seal
  • Valve body molded with fiber phenolic for 70MPa and 204°C operation
  • High-quality Canadian phosphor bronze springs with excellent restoring force
Product Images

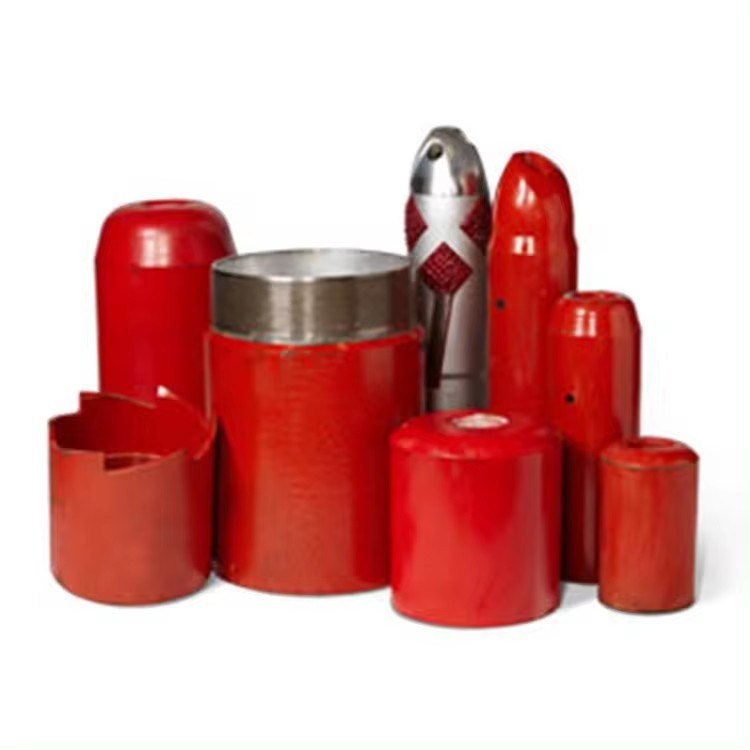

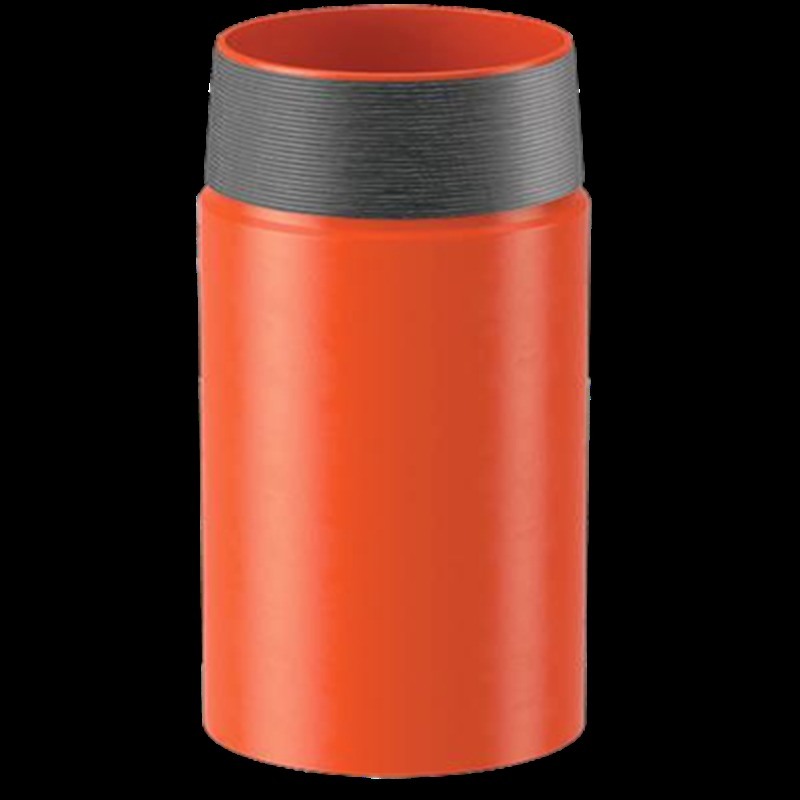

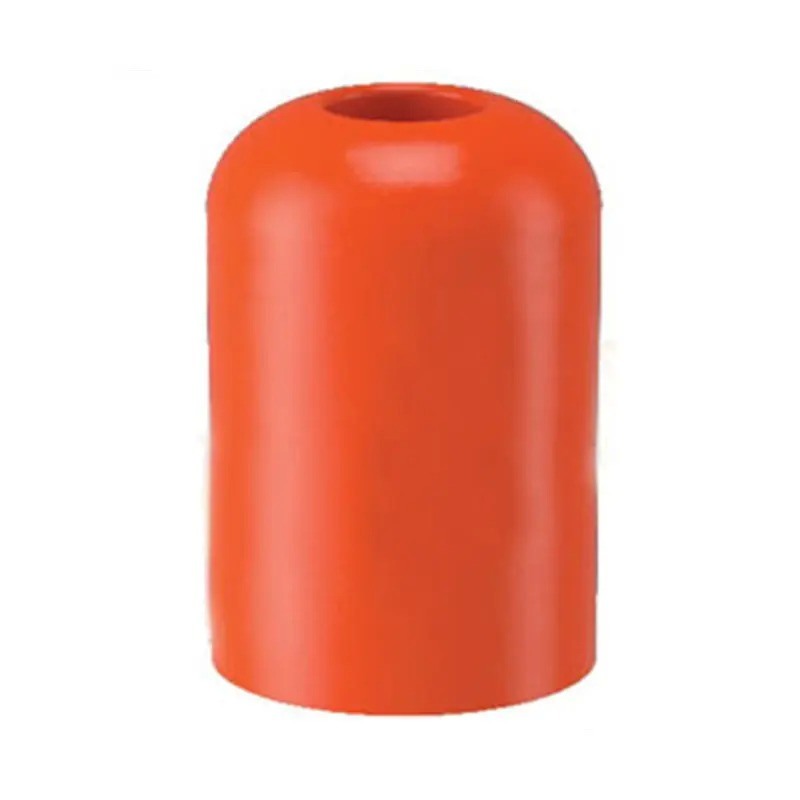

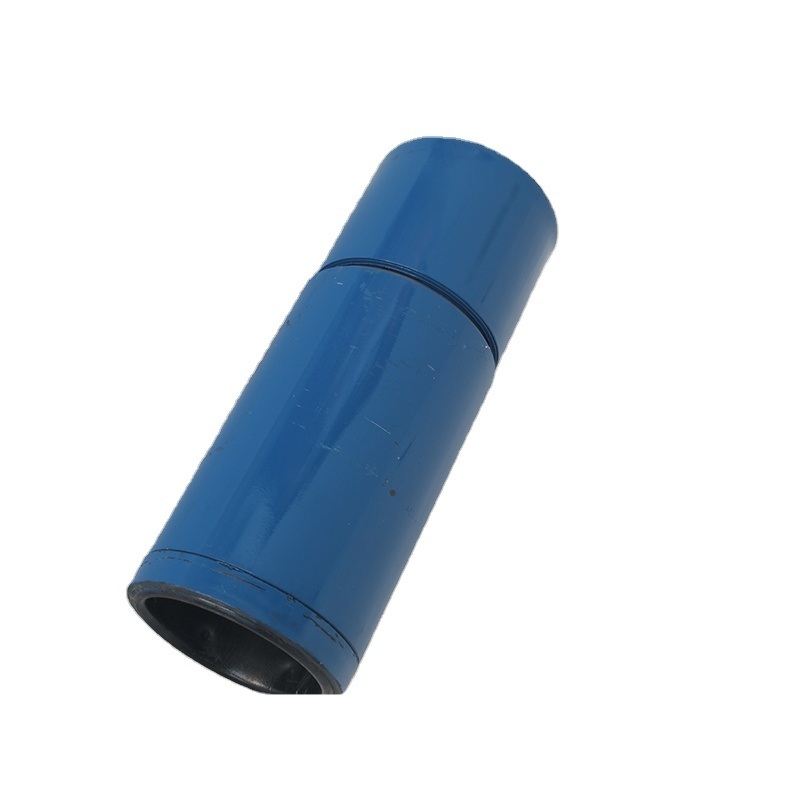

API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 3 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 4 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 5 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 6 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 7 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 8 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 9 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 10 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 11 API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals 12
Frequently Asked Questions
Q1: When can I get the price?
A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate this in your email for priority handling.
Q2: Could I have prices of your products?
A: Absolutely. Please send us an email with your requirements, and we'll respond within 24 hours.
Q3: Can I get a lower price if I order large quantities?
A: Yes, we offer volume discounts for larger quantity orders.
Q4: Do you inspect the finished products?
A: Yes, our QC department conducts thorough inspections at each production stage and before shipment.
Q5: What about the lead time for mass production?
A: Production lead times vary depending on order quantity and seasonal demand factors.
