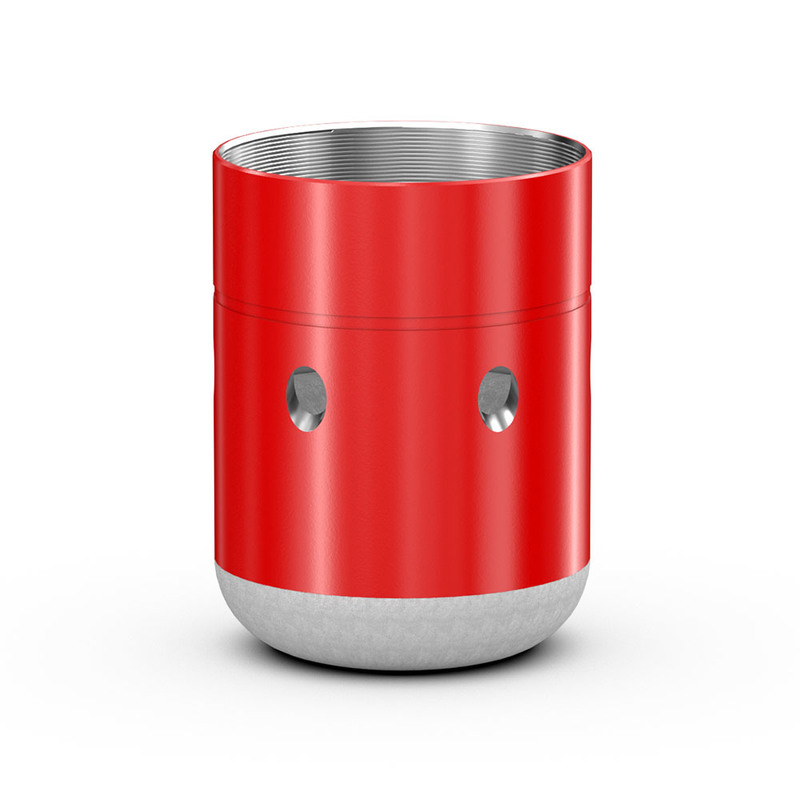

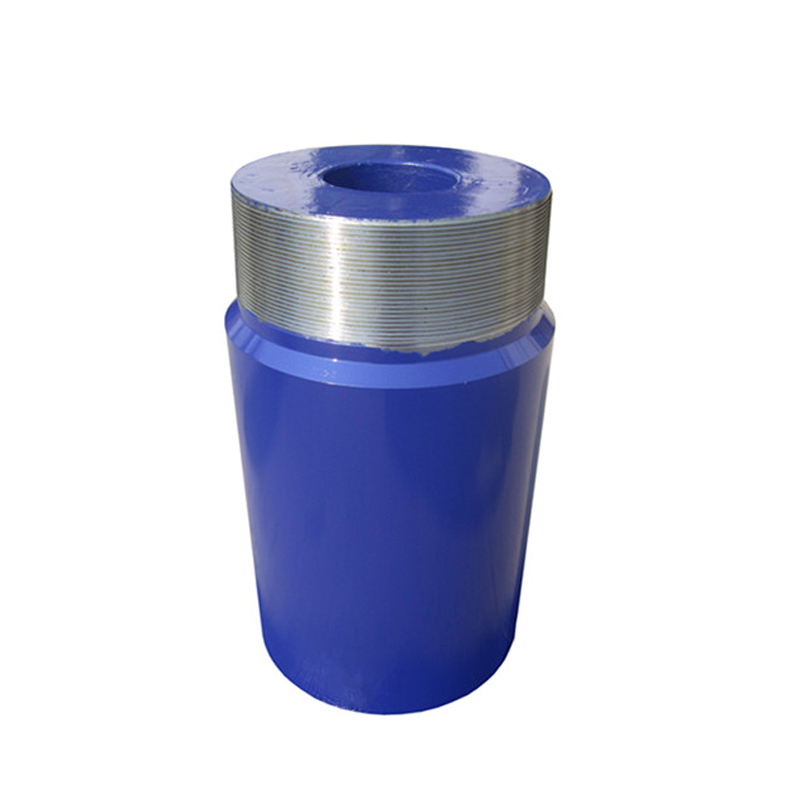

China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling

China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling

China Float Shoe

4-1/2 114.3mm Float Collar

N80 Cementing Tool

起源の場所:

江蘇、中国

ブランド名:

SWS

私達に連絡しなさい

引用を要求しなさい
China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling
プロダクト細部
寸法:
50*30*30
重さ:
10 kg
コアコンポーネント:
バルブ
バルブタイプ:
シングルバルブとダブルバルブ
処理型:
鍛造
仕様:
2〜3/8~20インチ
スレッドタイプ:
BTC\LTC\ 特別糸\ EU\ NU
スチールグレード:
N80\L80\P110
bore od:
6 "、7 5/8"、10 5/8 "、14 3/8"
ボアID:
4 3/4 "、6 1/4"、8 5/8 "、12 3/8"
最小退屈:
2 "、2 3/8"
スレッドタイプ:
5 1/2 "LCSG、7" LCSG、9 5/8 "LCSG、13 3/8" LCSG
圧力評価:
4351 lb/in²、3626 lb/in²
バルブサイズ:
70mm、90mm
温度定格:
150°C、204°C
関連製品
よい価格 API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling オンラインで

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

最もよい価格を得なさい
よい価格 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling オンラインで

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

最もよい価格を得なさい
よい価格 API 5CT 7-5/8

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

最もよい価格を得なさい
よい価格 Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty オンラインで

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

最もよい価格を得なさい
私達に連絡しなさい
86-519-83553967
Leo@service-js.com
86-519-83553967
今接触
製品の説明
API 5CT 4-1/2" 114.3mm China Float Shoe and Float Collar Cementing Tool
China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 0 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 1 China API 5CT 4-1/2 114.3mm N80 Float Shoe and Float Collar Cementing Tool for Oilfield Drilling 2
Product Specifications
Name Size(in) Bore O.D.(in) Bore I.D.(in) Min Bore Parameter(in) Thread Type lb(in²)
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Product Features
Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. It also provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures precise cement slurry displacement.
  • Hi Flow valves to reduce fluid erosion and minimize pressure drop
  • Available in two sizes: 70mm and 90mm
  • PDC drillable composite plastic materials for valve components
  • Standard seal rated to 150°C with optional 204°C seal
  • Valve body molded with fiber phenolic, 70MPa and 204°C seal
  • Spring made from phosphor bronze C510 material with high restoring force and drillable properties
  • Plunger seal top molded with HNBR, 70MPa and 204°C seal
