API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

API standard float shoes

oilfield drilling float shoes

5-20 inch cementing float equipment

起源の場所:

江蘇、中国

ブランド名:

SWS

証明:

API

私達に連絡しなさい

引用を要求しなさい
API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment
プロダクト細部
寸法:
5" - 20"
重さ:
10 kg
材料:
炭素鋼/304ステンレス鋼
スレッドタイプ:
STC LTC BTC EUE NUE XC
bore od:
6 "、7 5/8"、10 5/8 "、14 3/8"
ボアID:
4 3/4 "、6 1/4"、8 5/8 "、12 3/8"
最小退屈:
2 "、2 3/8"
圧力評価:
4351、3626 lb/in²
バルブサイズ:
70mm、90mm
温度定格:
150°C、204°C
シール素材:
HNBR
春の素材:
蛍光ブロンズC510
バルブボディ材料:
繊維フェノール
圧力抵抗:
70mpa
コアコンポーネント:
鋼鉄
関連製品
よい価格 API Standard 2-3/8

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

最もよい価格を得なさい
よい価格 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment オンラインで

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

最もよい価格を得なさい
よい価格 API Standard Float Collar 5 1/2

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

最もよい価格を得なさい
よい価格 API Standard Float Shoes 5-20in for Oilfield Drilling Cementing オンラインで

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

最もよい価格を得なさい
私達に連絡しなさい
86-519-83553967
Leo@service-js.com
86-519-83553967
今接触
製品の説明
Hot Product API Cementing Tools - Float Collar, Float Shoe & Guiding Shoe
Company Profile
API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 0
Product Description

Float equipment serves as essential components in casing equipment for primary cementing operations. These precision tools guide the casing to total depth while preventing contaminated mud from entering the casing string.

Key functions and benefits:

  • Provides landing point for casing wiper plugs
  • Reinforces the lower end of casing strings
  • Ensures accurate cement slurry displacement
  • Features Hi Flow valves to minimize fluid erosion and pressure drop
Technical Specifications

Available in two valve sizes: 70mm and 90mm

Material specifications:

  • Valve components: PDC drillable composite plastic
  • Standard seal rating: 150°C (204°C optional)
  • Valve body: Fibre phenolic, rated for 70MPa and 204°C
  • Spring: Canadian phosphor bronze C510 material with high restoring force
  • Plunger seal: HNBR material rated for 70MPa and 204°C
Product Images

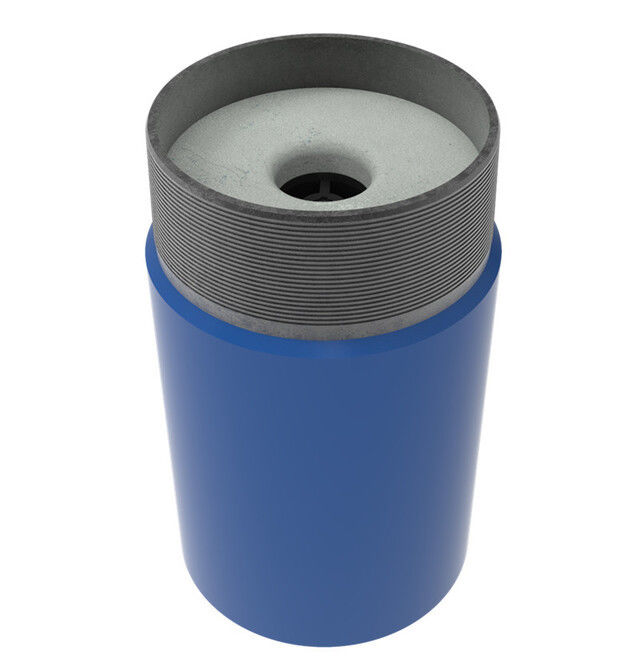

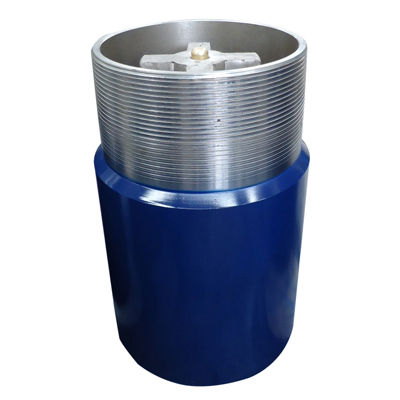

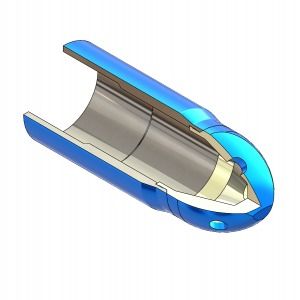

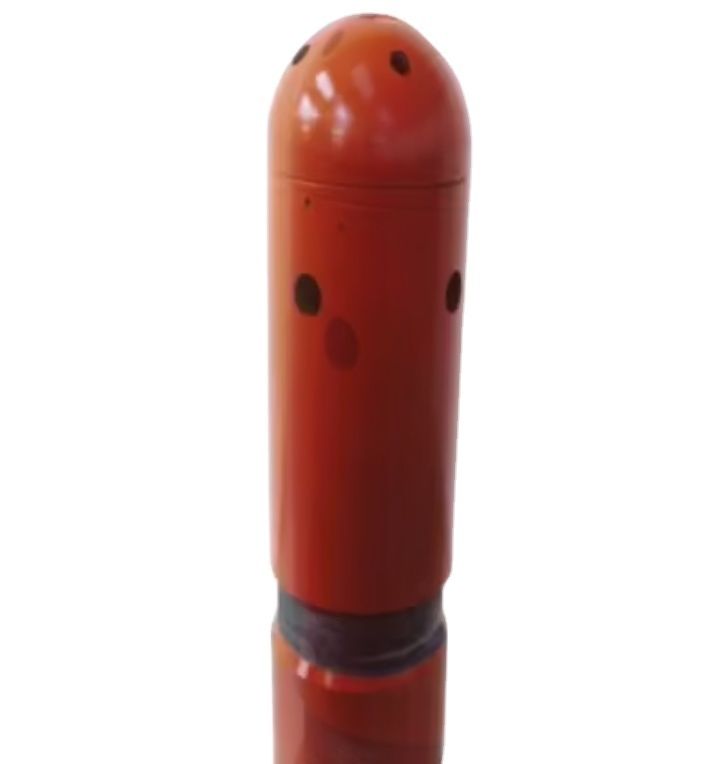

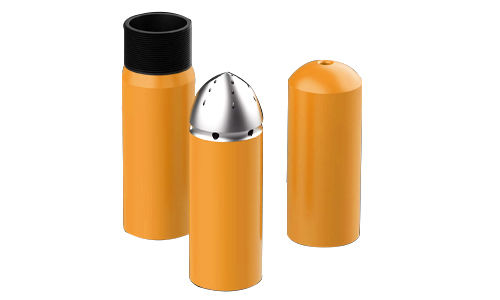

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 1 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 2 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 3 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 4 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 5 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 6 API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment 7
Technical Specifications
Name Size (in) Bore O.D. (in) Bore I.D. (in) Min Bore Parameter (in) Thread Type lb/in²
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
