API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling

API standard float collar

oilfield drilling float shoe

cementing float equipment casing

起源の場所:

江蘇、中国

ブランド名:

SWS

私達に連絡しなさい

引用を要求しなさい

API Standard Casing Float Collar Float Shoe 5-20 Inch Oilfield Drilling

プロダクト細部

寸法:

5" - 20"

重さ:

10 kg

スレッドタイプ:

STC LTC BTC EUE NUE XC

材料:

炭素鋼/アルミニウム合金

コアコンポーネント:

バルブ

bore od:

6 "、7 5/8"、10 5/8 "、14 3/8"

ボアID:

4 3/4 "、6 1/4"、8 5/8 "、12 3/8"

最小退屈:

2 "、2 3/8"

圧力評価:

70mpa

温度定格:

204°C

バルブサイズ:

70mm、90mm

シール素材:

HNBR

春の素材:

蛍光ブロンズC510

生産能力:

1か月あたり10000個以上

Moq:

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

最もよい価格を得なさい

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

最もよい価格を得なさい

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

最もよい価格を得なさい

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

最もよい価格を得なさい

私達に連絡しなさい

86-519-83553967

Leo@service-js.com

86-519-83553967

今接触

製品の説明

High Quality API Cementing Tools - Casing Float Collar & Float Shoe

Product Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Key Features and Benefits

Essential components for primary cementing operations in oilfield drilling
Guides casing to total depth while preventing contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for improved structural integrity
Ensures precise cement slurry displacement accuracy
Hi Flow valves minimize fluid erosion and pressure drop (available in 70mm and 90mm sizes)
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal capability

Technical Specifications

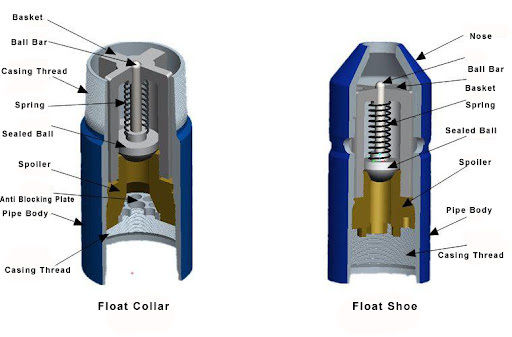

Valve body constructed with fiber phenolic material, rated for 70MPa and 204°C seal. Spring components sourced from Canada Victory Spring Company, made from phosphor bronze C510 material for high restoring force and drillability. Plunger seal top molded with HNBR, rated for 70MPa and 204°C operation.

Frequently Asked Questions

When can I get the price?

We typically provide quotes within 24 hours of receiving your inquiry. For urgent pricing requests, please indicate this in your email for priority handling.

Could I have prices of your products?

Yes, please contact us via email for current pricing. We respond to all inquiries within 24 hours.

Can I get a lower price if I order large quantities?

Yes, we offer volume discounts for larger quantity orders.

Do you inspect the finished products?

Yes, our QC department conducts thorough inspections at each production stage and performs final quality checks before shipping.

What about the lead time for mass production?

Production lead times vary based on order quantity and seasonal demand. We provide accurate timelines when processing your order.
