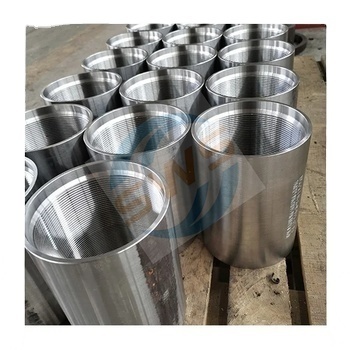

API 5 CT Float Collar 5.5 in Carbon Steel for Well Drilling

API 5 CT float collar

5.5 inch carbon steel float collar

well drilling float equipment

起源の場所:

中国

ブランド名:

SWS

私達に連絡しなさい

引用を要求しなさい

API 5 CT Float Collar 5.5 in Carbon Steel for Well Drilling

プロダクト細部

重さ:

5 kg

コアコンポーネント:

炭素鋼

バルブタイプ:

シングルバルブとダブルバルブ

マシンタイプ:

掘削ツール

処理型:

鍛造

タイプ:

300 325 343

サイズ:

標準サイズ

フロートカラーサイズ:

5 1/2 "、7"、9 5/8 "、13 3/8"

bore od:

6 "、7 5/8"、10 5/8 "、14 3/8"

ボアID:

4 3/4 "、6 1/4"、8 5/8 "、12 3/8"

最小退屈:

2 "、2 3/8"

スレッドタイプ:

5 1/2 "LCSG、7" LCSG、9 5/8 "LCSG、13 3/8" LCSG

圧力評価:

4351、3626 lb/in2

フロートの靴のサイズ:

5 1/2 "、7"、9 5/8 "、13 3/8"

色:

クライアントのリクエスト

HPHT Float Collar for Extreme Conditions, Cement Type with Double Valve System, Oil Drilling Equipment for Deep Wells

最もよい価格を得なさい

Professional Float Shoe and Collar Set for Oilfield Cementing, Dual Valve with Self-Locking Feature, API Certified

最もよい価格を得なさい

Eccentric Float Shoe for Petroleum Industry, Aluminum Core Construction, Oil Drilling Cementing Tool

最もよい価格を得なさい

High Strength Aluminum Float Collar for Petroleum Industry, Self-Locking Mechanism, Oil Drilling Equipment

最もよい価格を得なさい

私達に連絡しなさい

86-519-83553967

Leo@service-js.com

86-519-83553967

今接触

製品の説明

Auto-Filled Stab-in Float Collar With API and ISO

Product Description

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.

Specification

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in2)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Company Profile

Our Factory

Device Image

Exhibition

Certifications

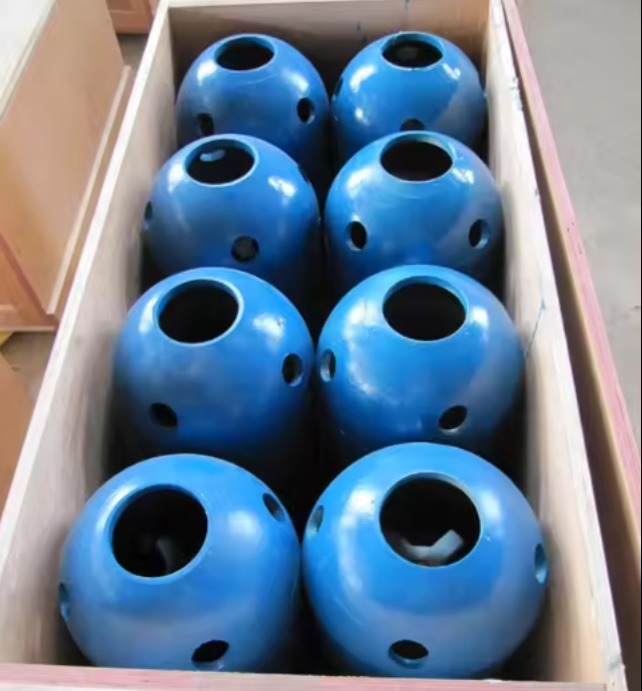

Product Packaging

FAQ

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, cheaper prices with more bigger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products will be inspected by QC department before shipping.

Q5: What about the lead time for the mass production?

A: Honestly, it depends on the order quantity and the season you place the order.
