API 5CT Double Valve Casing Float Shoe 2KG for Well Drilling

API 5CT casing float shoe

double valve float shoe for drilling

well drilling float shoe 2KG

起源の場所:

中国

証明:

ISO API

私達に連絡しなさい

引用を要求しなさい

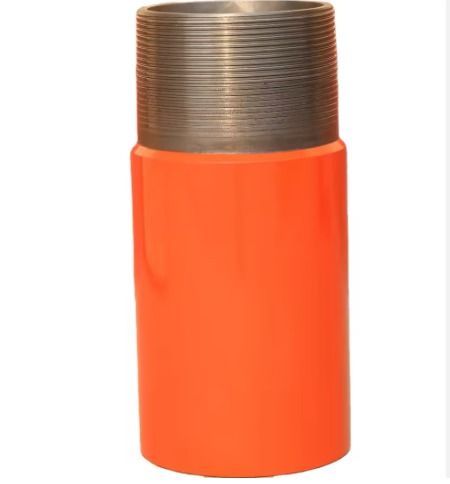

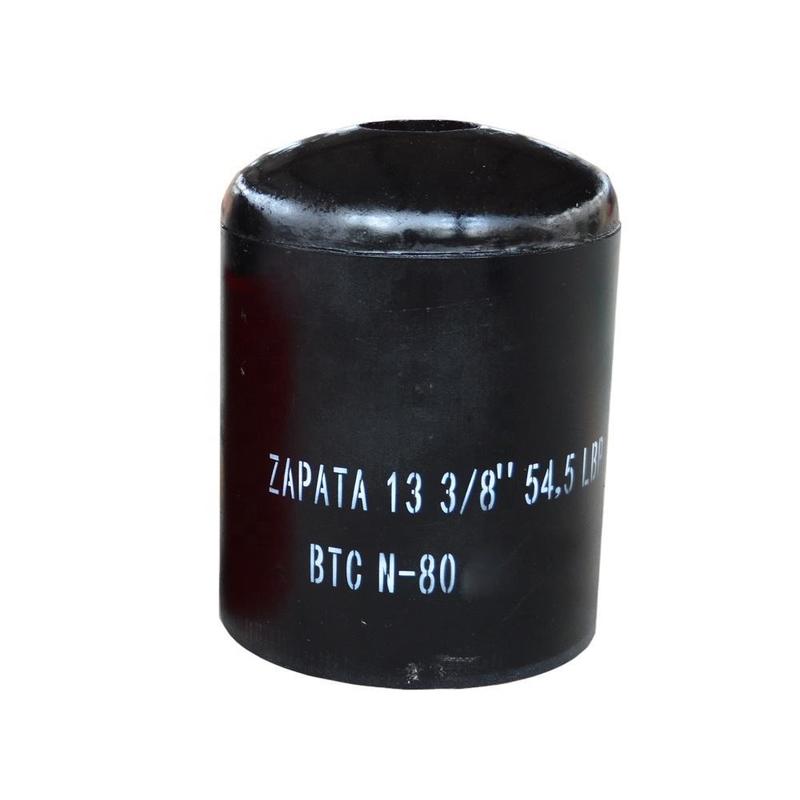

API 5CT Double Valve Casing Float Shoe 2KG for Well Drilling

プロダクト細部

重さ:

2 kg

コアコンポーネント:

バルブ

バルブタイプ:

シングルバルブとダブルバルブ

マシンタイプ:

掘削ツール

処理型:

鍛造

サイズ:

5 1/2 "、7"、9 5/8 "、13 3/8"

bore od:

6 "、7 5/8"、10 5/8 "、14 3/8"

ボアID:

4 3/4 "、6 1/4"、8 5/8 "、12 3/8"

最小退屈:

2 "、2 3/8"

スレッドタイプ:

5 1/2 "LCSG、7" LCSG、9 5/8 "LCSG、13 3/8" LCSG

圧力評価:

4351、3626 lb/in2

スタンダード:

API 5 CT

色:

カスタマイズ

使用:

よく掘削

適用産業:

エネルギーとマイニング

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

最もよい価格を得なさい

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

最もよい価格を得なさい

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

最もよい価格を得なさい

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

最もよい価格を得なさい

私達に連絡しなさい

86-519-83553967

Leo@service-js.com

86-519-83553967

今接触

製品の説明

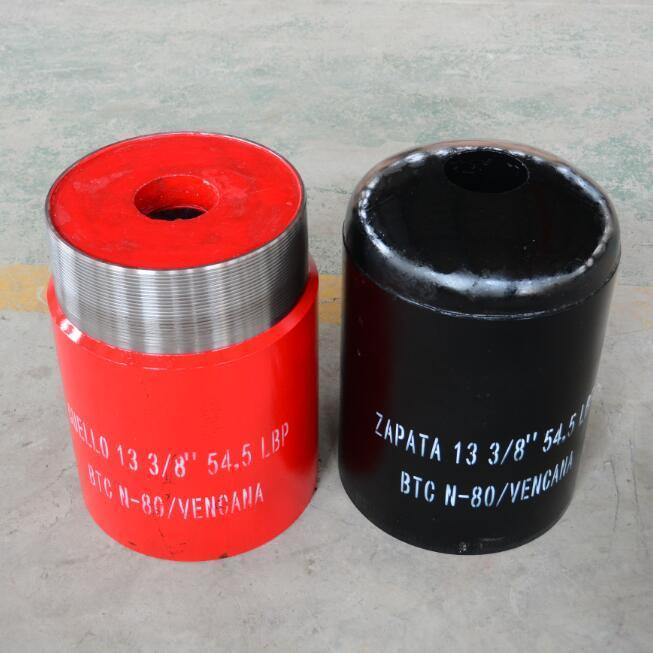

Factory Cheap Price Differential Fill up Double Valve Casing Float Shoe

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.

Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in2)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Company Profile

Our Factory

Device Image

Exhibition

Certifications

Product Packaging

Frequently Asked Questions

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, cheaper prices are available for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products will be inspected by our QC department before shipping.

Q5: What about the lead time for the mass production?

A: The lead time depends on the order quantity and the season you place the order.

札：

API 5CT Double Valve Casing Float Shoe 2KG for Well Drilling

API 5CT casing float shoe

double valve float shoe for drilling

well drilling float shoe 2KG

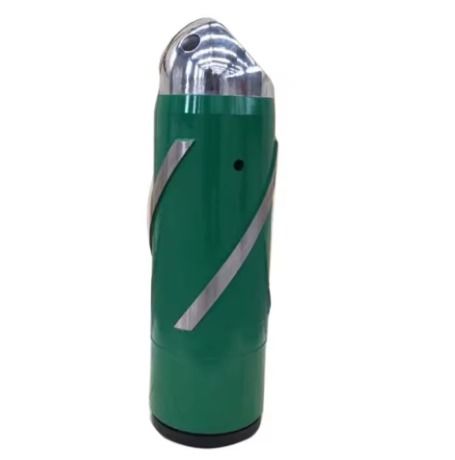

API Standard 2-3/8" Aluminum Alloy Float Shoe for Cementing

API Standard Float Shoes 5-20 Inch for Oilfield Drilling Equipment

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

API Standard Float Shoes 5-20in for Oilfield Drilling Cementing

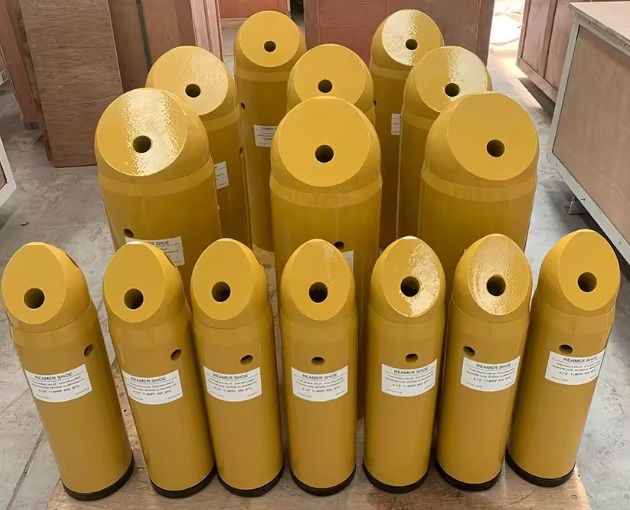

リーマーの浮遊物の靴および浮遊物つば
